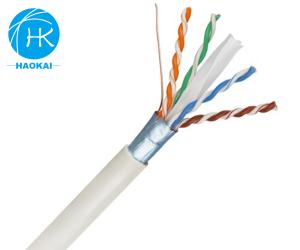

Shielded Indoor FTP CAT6 LAN Cable 23awg Copper Network Cable

Name: Shielded Indoor FTP CAT6 LAN Cable 23awg Copper Network Cable
Brand: HAOKAI
Price: 1 USD

China Shielded Indoor FTP CAT6 LAN Cable 23awg Copper Network Cable wholesale

Brand Name : HAOKAI

Model Number : FTP CAT6 cable

Certification : CE,ROSH

Place of Origin : Dongguan

MOQ : 10000m

Price : By negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 100000m/1day

Delivery Time : 7 work days

Packaging Details : BOX

Jacket Material : PVC

Jacket : PE

Cable Jacket : PVC (Round)

Length : 305m

Shielding Type : Unshielded (UTP)

Shielding : STP

Material : BC,CCA

Contact Now

FTP CAT6 Indoor Lan Cable F/Utp Cat6 Cat 6 Ftp Cat6 Copper Cable 23awg Network Cable Cat6 Shielded Ftp Cable

Material Instruction
1.CCA or pure copper.
2.Eco-friendly,pollution-free and new materials selected.Promise new material only.
3.Insulation: Solid HDPE.
4.Eco-friendly PVC Jacket , high-temperature resistance,long working life.

Physical Electrical Characteristics

Using standard twisted construction design, small crosstalk of signal transmission Upload and download in high speed transfer.
Support 10-Gigabit Ethernet netword transmission requirements.

Mutual capactitance (max): 5.6nF/100m;
Unbalanced capacitance (max): 160pF/100m;
Dielectric strength between conductors (min): 2.5kV/2s;
Impedance: 1-550MHz 100±15Ω;
Differential phase delay (max): 45ns/100m;
Operating temperature: -50~+70°C;
Permitted bend radius: Over 8 times diameter of the cable.

Transmission Performance for reference

Frequency	ATT(20°C)	RL	NEXT	PSNEXT	ACR-F	PS ACR-F	PS ANEXT	PS AACR-F
(MHz)	≤dB	≥dB	≥dB	≥dB	≥dB	≥dB	≥dB	≥dB
1	2.1	20	74.3	72.3	67.8	64.8	67	67
4	3.8	23	65.3	63.3	55.8	52.8	67	66.2
10	5.9	25	59.3	57.3	47.8	44.8	67	58.2
16	7.5	25	56.2	54.2	43.7	40.7	67	54.1
20	8.4	25	54.8	52.8	41.8	38.8	67	52.2
31.25	10.5	23.6	51.9	49.9	37.9	34.9	67	48.3
62.5	15	21.5	47.7	45.4	31.9	28.9	65.6	42.3
100	19.1	20.1	44.3	42.3	27.8	24.8	62.5	38.2
200	27.6	18	39.8	37.8	21.8	18.8	58	32.2
250	31.1	17.3	38.3	36.3	19.8	16.8	56.5	30.2
300	34.3	16.8	37.1	35.1	18.3	15.3	55.3	28.7
500	45.3	15.2	33.8	31.8	13.8	10.8	52	24.2
550	51.2	14.5	35.1	29.5	10.8	9.6	48	20.2

Package Details

305meters or 1000ft pull box or wooden drum

Two boxes into a carton
