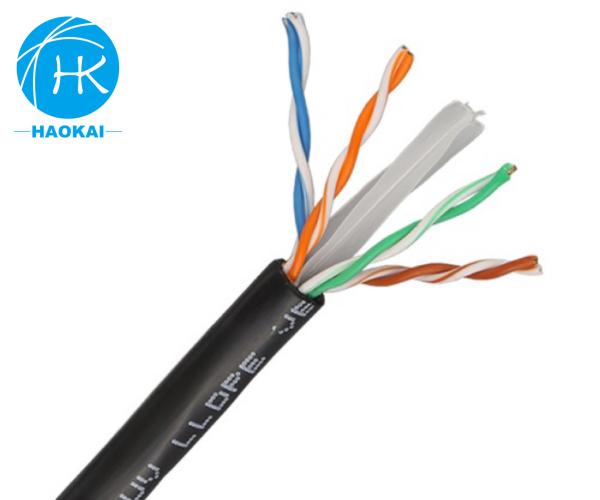

UTP CAT6 UV Resistance Outdoor LAN Cable Cat6 Ethernet Network Cable 300m

Name: UTP CAT6 UV Resistance Outdoor LAN Cable Cat6 Ethernet Network Cable 300m
Brand: HAOKAI
Price: 1 USD

China UTP CAT6 UV Resistance Outdoor LAN Cable Cat6 Ethernet Network Cable 300m wholesale

Brand Name : HAOKAI

Model Number : UTP CAT6A cable

Certification : CE,ROSH

Place of Origin : Dongguan

MOQ : 10000m

Price : By negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 100000m/1day

Delivery Time : 7 work days

Packaging Details : BOX

Shield : UTP, unshielded twisted pair

Support : outdoor

Package : 305meters per Box

Application : FTTH FTTB FTTX Network

Warranty : Lifetime

Connector Plating : Gold

Cable Jacket : PVC (Round)

Cable Color : Black

Contact Now

UTP CAT6 UV Resistance Outdoor Lan Cable Cat6 Ethernet Cable 300m Net Cable Cat6 Utp Network Cable Outdoor

Material Instruction
1.CCA or pure copper.
2.Eco-friendly,pollution-free and new materials selected.Promise new material only.
3.Insulation: Solid HDPE.
4.Eco-friendly PVC Jacket , high-temperature resistance,long working life.

Physical Electrical Characteristics

Using standard twisted construction design, small crosstalk of signal transmission Upload and download in high speed transfer.
Support 10-Gigabit Ethernet netword transmission requirements.

Mutual capactitance (max): 5.6nF/100m;
Unbalanced capacitance (max): 160pF/100m;
Dielectric strength between conductors (min): 2.5kV/2s;
Impedance: 1-550MHz 100±15Ω;
Differential phase delay (max): 45ns/100m;
Operating temperature: -50~+70°C;
Permitted bend radius: Over 8 times diameter of the cable.

Transmission Performance for reference

Frequency	ATT(20°C)	RL	NEXT	PSNEXT	ACR-F	PS ACR-F	PS ANEXT	PS AACR-F
(MHz)	≤dB	≥dB	≥dB	≥dB	≥dB	≥dB	≥dB	≥dB
1	2.1	20	74.3	72.3	67.8	64.8	67	67
4	3.8	23	65.3	63.3	55.8	52.8	67	66.2
10	5.9	25	59.3	57.3	47.8	44.8	67	58.2
16	7.5	25	56.2	54.2	43.7	40.7	67	54.1
20	8.4	25	54.8	52.8	41.8	38.8	67	52.2
31.25	10.5	23.6	51.9	49.9	37.9	34.9	67	48.3
62.5	15	21.5	47.7	45.4	31.9	28.9	65.6	42.3
100	19.1	20.1	44.3	42.3	27.8	24.8	62.5	38.2
200	27.6	18	39.8	37.8	21.8	18.8	58	32.2
250	31.1	17.3	38.3	36.3	19.8	16.8	56.5	30.2
300	34.3	16.8	37.1	35.1	18.3	15.3	55.3	28.7
500	45.3	15.2	33.8	31.8	13.8	10.8	52	24.2
550	51.2	14.5	35.1	29.5	10.8	9.6	48	20.2

Package Details

305meters or 1000ft pull box or wooden drum

Two boxes into a carton
